How Does Pogo Pin Achieve Ultra-Long Life? Three Core Safeguards for Lasting Reliability
How Does Pogo Pin Achieve Ultra-Long Life? Three Core Safeguards for Lasting Reliability

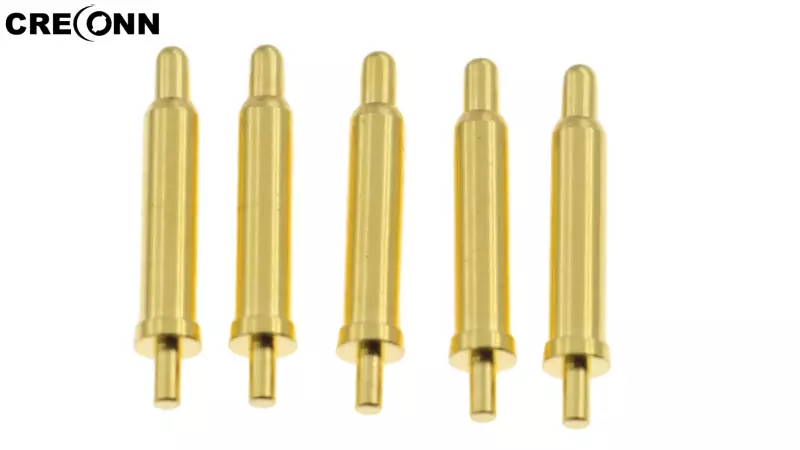

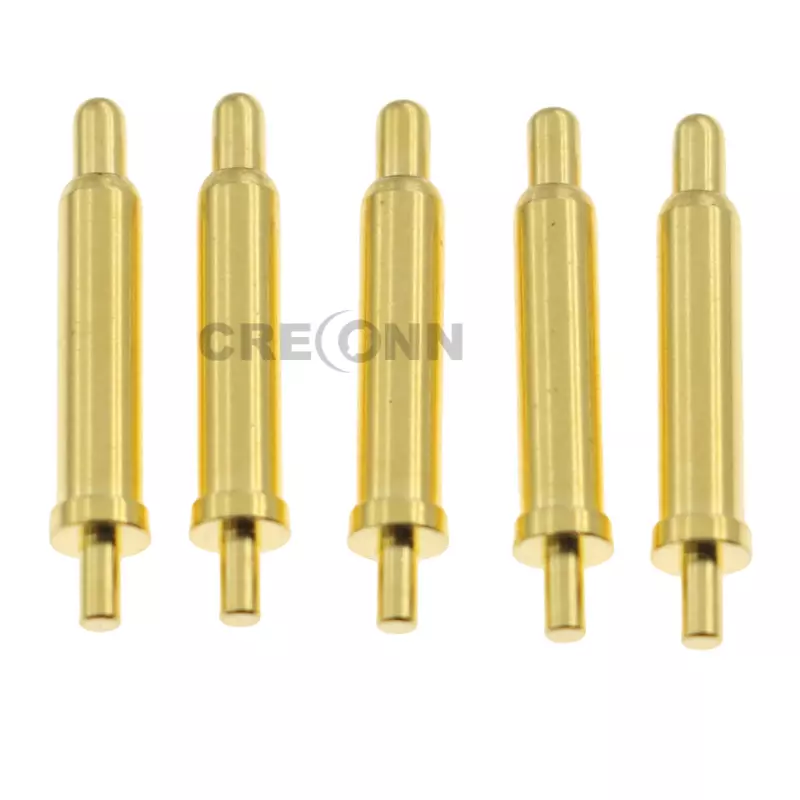

Though tiny, Pogo Pins shoulder power, signal, and data transmission. To survive 100,000+ mating cycles with <25 mΩ contact resistance and zero sticking, three pillars are essential:
1. Gold-Grade Materials & Plating
• 16 μ" high-purity gold over nickel underplate boosts conductivity and corrosion resistance 8–10×, resisting sweat, salt spray, and sulfidation.
• 304/316L stainless spring: ≥1,200 MPa fatigue strength; <5 % force loss after 100 k cycles.
2. Micron-Level Precision
• Swiss-type lathe machining: roundness ≤0.005 mm, straightness ≤0.01 mm, minimizing side wear.
• Mirror-polished inner wall (Ra ≤0.1 μm) cuts friction.
• 100 % in-line dynamic resistance test (<25 mΩ) eliminates potential sticking or dropout.
3. Optimized Structure & Travel
• 10–15 % initial preload prevents tip bounce for first-contact stability.
• 1.2–1.5× working travel reserves tolerance and thermal expansion, avoiding over-compression fatigue.
• Optional silicone seal blocks dust/sweat ingress, further extending life.
Ø Field Proof: A TWS charging cradle using 0.6 mm Pogo Pins showed only +4 mΩ rise, 3.2 % force decay, and zero visible wear after 50,000 cycles.
Ø Choose Pogo Pins with “gold plating + micron precision + structural optimization” for connections that stay reliable—cycle after cycle.
Guangdong Corecon Precision Industry Co., Ltd. leading brands hold >30% market share, validated by large-scale deployments. Top-tier after-sales services offer 24-hour response times, minimizing downtime risks. By leveraging these data-driven criteria, you can select connectors that ensure your new energy system operates safely, efficiently, and reliably.
