M12 Encapsulated Cables: Building Tough, Reliable Nerve Endings for Sensor Systems
M12 Encapsulated Cables: Building Tough, Reliable Nerve Endings for Sensor Systems
In industrial automation, rail transit and smart agriculture, sensors serve as system "senses" capturing real-time physical changes. M12 encapsulated cables, with their integrated robust design and excellent environmental adaptability, are indispensable for stable, accurate transmission of these critical signals.
Core Advantages: Why Encapsulated Design Is Ideal for Sensors?
M12 connectors are industrial standards for their compact threaded lock, IP67/IP69K protection and vibration resistance. Encapsulated (molded/pre-cast) variants boost performance via factory-integrated injection molding of connectors and cables:
1. Ultimate Sealing & Durability: The encapsulation forms a seamless barrier at the connector-cable junction, blocking moisture, dust and oil, and protecting sensors in harsh environments with extreme temperatures, impact or vibration.
2. Superior Stress Relief: Acting as an efficient strain relief, the encapsulation disperses bending/pulling stress on internal contacts, enhancing connection reliability in dynamic applications.
3. Enhanced System Reliability: Integrated design eliminates on-site installation risks, reducing loose-connection failures and maintenance needs for continuous sensor network operation.
Key Applications: Typical Scenarios for Encapsulated M12 Cables
Their robust protection and durability make M12 encapsulated cables ideal for sensor connections in harsh environments:
• Factory Automation & Robotics: Connect photoelectric sensors, proximity switches and encoders in robotic arms, conveyors and CNC machines, withstanding constant vibration and impact (e.g., KEYENCE’s M12 connector-type photoelectric sensors).
• Rail Transit: Link speed, temperature and vibration sensors under train carriages and bogies, resisting high-speed vibration, temperature fluctuations and chemical corrosion.
• Outdoor & Harsh Environments: Used in smart agriculture (soil moisture sensors), heavy-duty vehicles, food & beverage and marine electronics, enduring sunlight, rain, wide temperature changes and salt spray.
Selection Guide: Choosing the Right M12 Encapsulated Cable
Select M12 encapsulated cables based on sensors’ electrical and physical requirements:
|
Selection Dimension |
Description & Common Options |
|
Coding & Pin Count |
Code A (3/4/5 pins): Universal for sensor/actuator analog/digital signals; Codes B/D/X for bus/Ethernet. |
|
Protection Rating |
IP67 (dust-proof, temporarily submersible); some models offer IP65/IP69K. |
|
Cable Characteristics |
PUR sheath (oil/wear/tear-resistant); operating temperature ≥ -15°C to +80°C (or wider). |
|
Electrical Parameters |
Match sensor power (e.g., 24V DC, 2A/4A); shielded models resist EMI for clean signals. |
|
Installation Type |

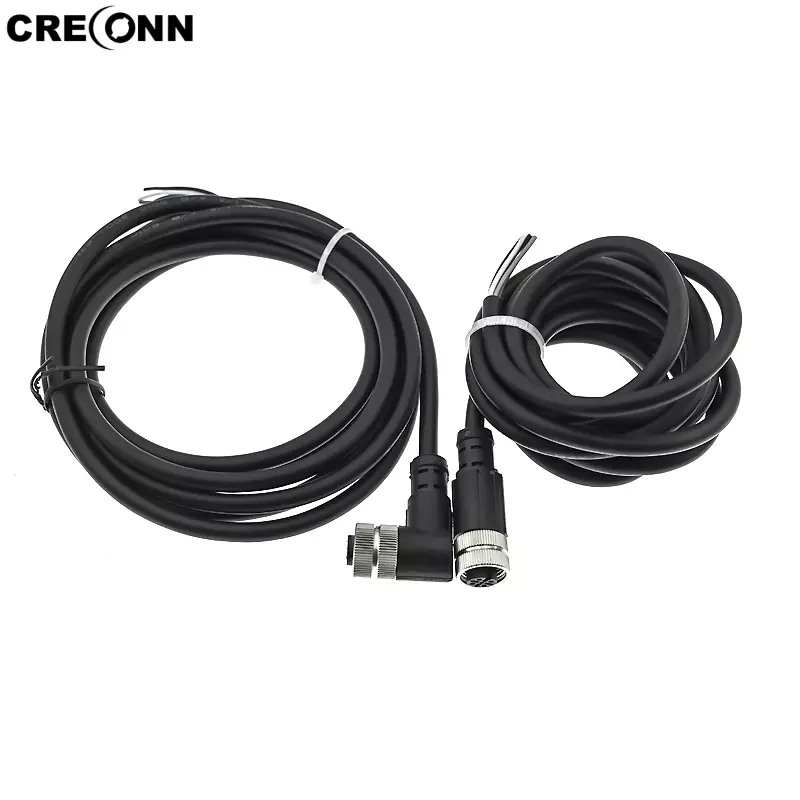

Straight or 90° right-angle; right-angle saves space for cabinet/compact wiring. |
Industry Standards & Quality Assurance
Reliable M12 connectors comply with IEC standards for interoperability. For high-safety fields (automotive/rail), choose IATF 16949-certified products for consistent quality.
Summary
M12 encapsulated cables are foundational for robust sensor networks. Their integrated design enhances M12’s strengths with moisture/shock resistance, ensuring unobstructed signal transmission and supporting critical systems like smart manufacturing.
