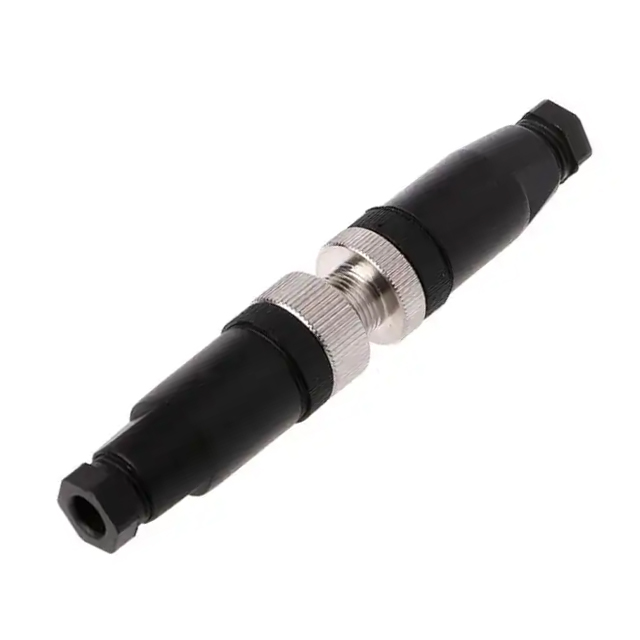

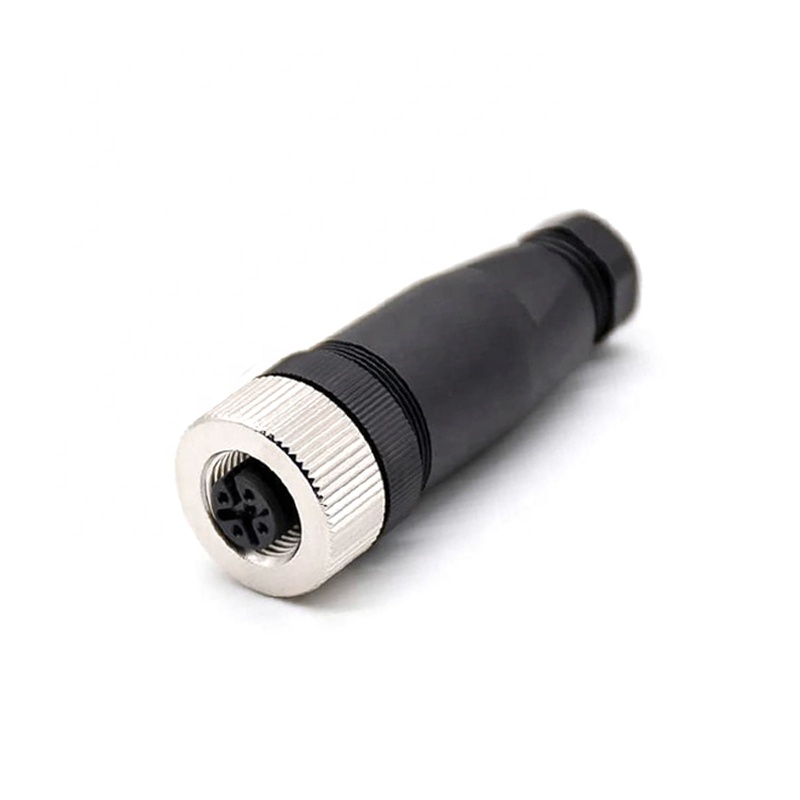

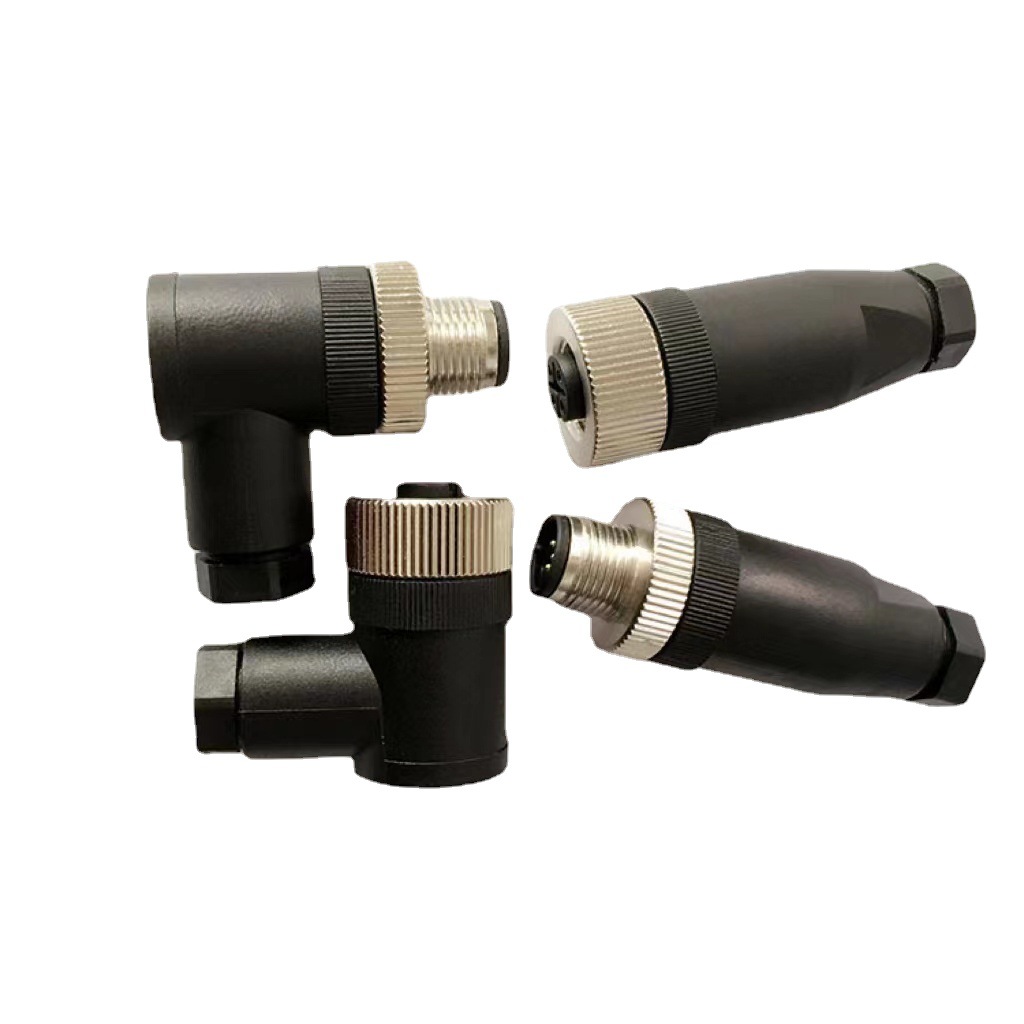

M12 Waterproof Connector Connecting Wire 3 Pin 3 Core Metal Shield Connector Aviation Plug 4 5 8 1 2-Core
Product Advantages
Temperature range： -25°C~+80°C
Pin material：Brass/phosphor copper gold-plated
Contact material：Copper (gold-plated)
Insert material：PA66+30%GF
Application：Industrial Automation，Camera，Industrial Machinery，Navigation，Communication，Medical，Mapping，Aerospace，Security，Electronic Equipment，Automotive
Product Details
|
Model
|
M12-4C-MF
|
M12-5C-MF
|
M12-8C-MF
|
|
Pins
|
4 Pin
|
5 Pin
|
8 Pin
|
|
Voltage
|
250V
|
125V
|
60V
|
|
Current
|
4A
|
4A
|
2A
|
|
Cable OD
|
Max 0.75mm2
|
Max 0.5mm2
|
|
|
Material
|
PUR, Brass with gold plate
|
||
|
IP Rating
|
IP67
|
||
|
Temperature Rating
|
-25°C~+80°C
|
||
|
Certificates
|
CE, RoHS, REACH
|
||
|
Warranty
|
2 years
|
||
|
item
|
value
|
|
Model Number
|
M12 Connectors
|
|
Type
|
Plug - Sockets
|
|
Packaging
|
CARTON BOX
|
|
Description
|
Circular connectors
|
|
Protection level
|
IP67
|
|
Shell material
|
Brass nickel plating
|
|
Pin material
|
Brass/phosphor copper gold-plated
|
|
Application
|
Industrial Automation/Automotive
|
|
Applicable temperature
|
-25°C~+80°C
|
|
Pin
|
2~7 Pins
|
|
Insulation Material
|
PPS
|
|
Out Shell Material
|
Chrome Plated Brass
|
|
Contact Type
|
Solder Male
|
