Application of M12 Industrial Connectors in the Field of Automation

Application of M12 Industrial Connectors in the Field of Automation

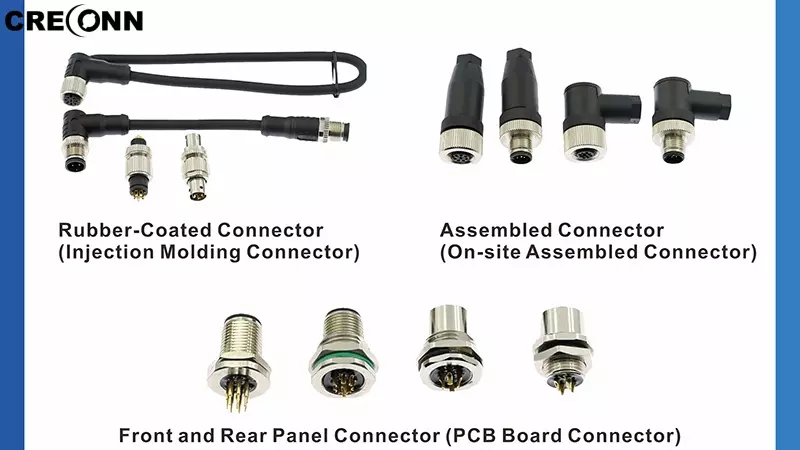

1. First, What is an M12 Connector?

A "star player" among industrial circular connectors, named for its 12mm interface diameter. It comes with a threaded locking structure, offering dustproof, waterproof, and anti-vibration protection. Capable of stably transmitting electrical signals/data in harsh industrial environments with oil contamination, high temperatures, and strong electromagnetic interference, it serves as the "nerve junction" of automated equipment.

2. 3 Core Applications in Automation Scenarios

• Smart Manufacturing Production Lines

Acting as the "bridge" for signals between robotic arms, conveyor belts, and sensors. For instance, the force feedback signals of welding robots and image data from visual inspection equipment rely on it for millisecond-level transmission, preventing production line "disconnection and shutdown".

• Intelligent Warehousing & Logistics

AGV robots, scanners in automated warehouses, and position sensors all depend on its connection. Supporting IP67 or higher protection rating, it ensures precise movement of robots and efficient cargo sorting even with water stains and dust on warehouse floors.

• Process Automation Control

Temperature and pressure transmitters in industries like chemical engineering and metallurgy are connected to PLC systems via M12 connectors. With characteristics of resistance to high and low temperatures (-40℃ to 85℃) and chemical corrosion, it guarantees uninterrupted data collection.

3. Why It's Indispensable for the Automation Industry?

• Time-Saving Quick Plugging & Unplugging: It takes only 10 seconds to complete the connection, increasing equipment maintenance efficiency by 50% compared to traditional wiring.

• Strong Standardized Compatibility: Available in various codings such as A/B/D/X, compatible with mainstream industrial protocols like Ethernet and PROFINET.

• Long Lifespan for Cost Reduction: With a plugging/unplugging cycle of over 1000 times, it reduces the frequency of equipment failure and maintenance.

4. Selection Tips

• Check transmission needs: Choose power type for electricity transmission, data type for data transmission;

• Check protection rating: Prioritize IP68 for humid/dusty environments;

• Check wiring method: Welding type is suitable for fixed scenarios, while crimping type facilitates later maintenance.
