GX16 VS M16 Circular Connectors: Key Specifications & Selection Criteria

GX16 VS M16 Circular Connectors: Key Specifications & Selection Criteria

In industrial control, automation systems, and electronic applications, the reliability and compatibility of circular connectors significantly impact system stability. GX16 and M16—two standardized 16mm-diameter connectors—are often misselected due to structural differences. This article provides a professional comparison across three dimensions: electrical characteristics, mechanical properties, and application scenarios.

 1. Electrical Performance Comparison

² Current Rating

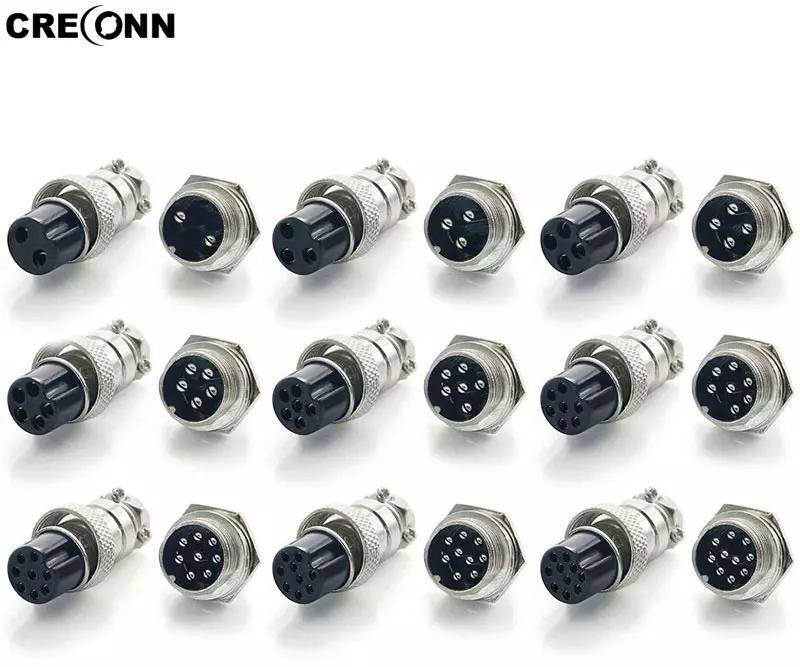

  - GX16: Standard models support up to 5A (@250V AC), suitable for signal transmission or low-power supply.

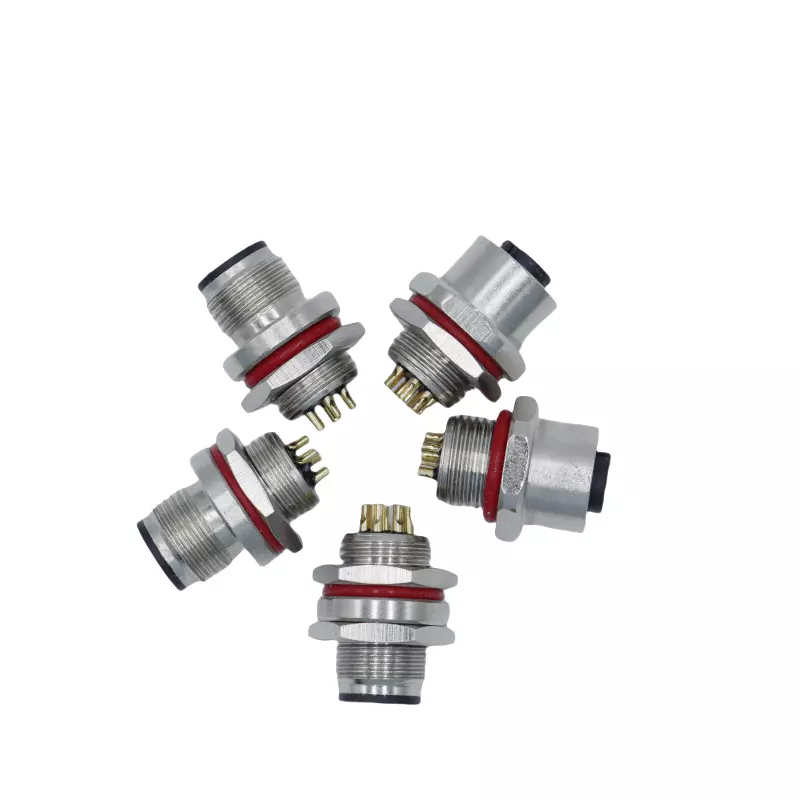

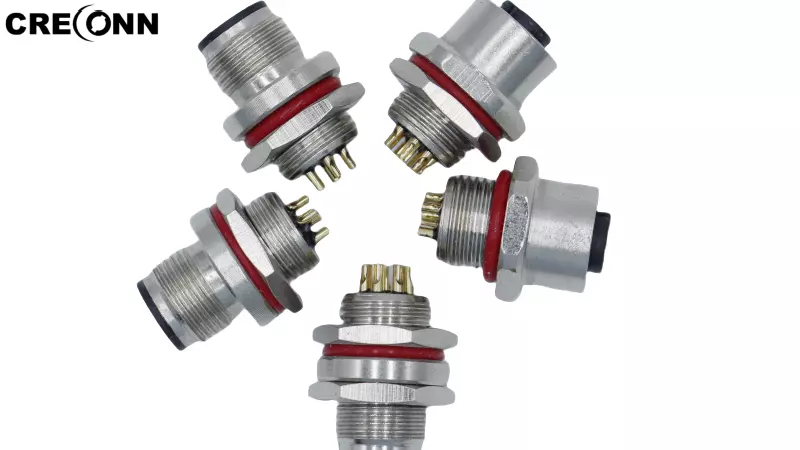

  - M16: Industrial-grade variants handle 10A (@400V AC), ideal for high-current applications like motor drives.

² Contact Resistance

  - Both use gold/nickel-plated brass contacts, but M16 typically has lower resistance (<10mΩ) due to higher contact force (~1.5N).

 2. Mechanical Design & Protection

² Thread Specifications

  - GX16: Metric thread M16×1.0, fewer turns (~5), designed for quick mating.

  - M16: Available in M16×1.5 (metric) or PG16 (PG thread), with more turns (7-9) for superior vibration resistance.

²  IP Rating

  - GX16: Default IP65 (water jet-resistant), optional IP67 with sealing.

  - M16: Industrial models standardize IP67, while metal-shell versions achieve IP68 (submersion up to 1m).

 3. Typical Applications

 4. Selection Workflow

1. Current >5A? → Choose M16

2. Vibration/waterproofing needed? → M16 (IP67+ metal shell)

3. Cost-sensitive + low-voltage signals? → GX16

Ø Pro Tip: The IEC 61076-2-104 standard defines mechanical strength tests for M16 connectors (e.g., 50N axial pull test), while GX16 often follows manufacturer specs—verify certifications for critical applications.
