Key Points for Energy Storage Connector Selection
Key Points for Energy Storage Connector Selection

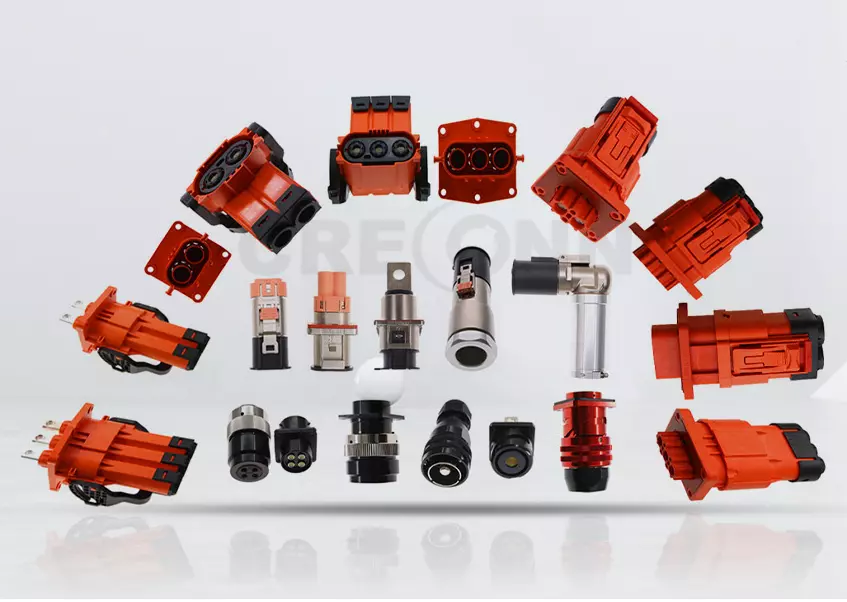

I. Core Count Selection: Based on Transmission Requirements
1. Single-Core Connector
◦ Features: 1 terminal, simple structure, low cost
◦ Application: Simple single-circuit transmission such as battery cell series/parallel connection, small inverter single circuit
◦ Reminder: Verify rated current/voltage compatibility
1. Dual-Core Connector
◦ Features: 2 independent terminals, simultaneous dual-circuit transmission, simplified wiring
◦ Application: BMS "power + signal" parallel transmission, dual-output connection
◦ Reminder: Parameters of the two terminals must match their respective circuits
1. Tri-Core Connector
◦ Features: 3 terminals, supports multi-circuit/three-phase power, high integration
◦ Application: Industrial/commercial energy storage main circuits, complex systems requiring grounding
◦ Reminder: Prioritize UL/IEC certified products; ensure insulation and temperature resistance meet standards
II. Connector Type: Based on Space Conditions
1. Straight Connector
◦ Advantages: Easy plug-in, low signal loss, low cost
◦ Application: Scenarios with sufficient equipment spacing (e.g., outdoor power station open wiring, equipment front docking)
◦ Note: Narrow spaces may cause cable bending damage
1. Angled Connector (mostly 90°)
◦ Advantages: Fits equipment wiring, saves space, avoids cable extrusion
◦ Application: Compact spaces (e.g., energy storage containers, wall-mounted energy storage cabinets)
◦ Note: Align the angle during plug-in; prevent loosening from pulling
III. 3-Step Quick Selection Method
1. Determine core count: Single circuit → Single-core; Dual circuit → Dual-core; High-power/complex circuit → Tri-core
2. Choose type: Sufficient space → Straight; Compact space → Angled
3. Verify parameters: Current, voltage, temperature resistance (-40℃~125℃), protection level (IP67+ preferred)
