M12 Connector Selection Guide: Metal vs. Plastic – A Technical Comparison

M12 Connector Selection Guide: Metal vs. Plastic – A Technical Comparison

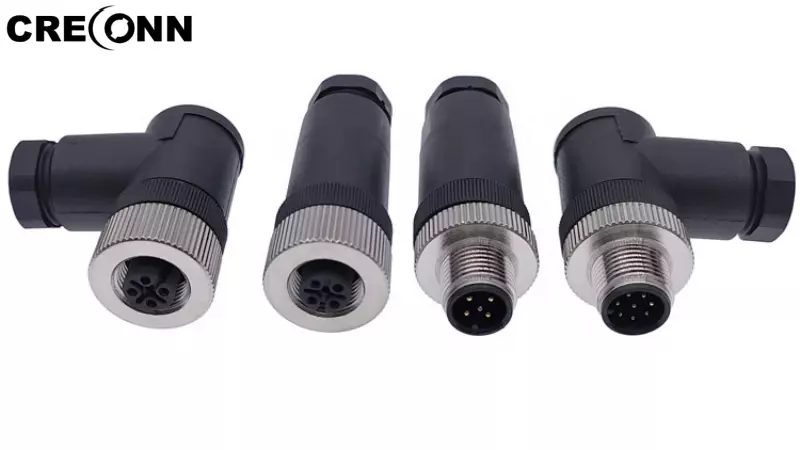

When choosing between metal and plastic M12 connectors for industrial applications, key technical parameters and operational conditions must be considered. Here’s a data-driven comparison:

 1. Material Properties

- Metal Housing (Brass/Stainless Steel)

  ▶ EMI Shielding: ≥60dB (IEC 61000-4-3)

  ▶ Temp. Range: -40°C to +125°C

  ▶ IP Rating: IP67/IP69K (with sealing)

- Plastic Housing (PBT/PA66)

  ▶ Insulation Resistance: >1000MΩ (500VDC)

  ▶ Temp. Range: -25°C to +85°C

  ▶ Weight: 40-50% lighter (same size)

 2. Application Scenarios

Choose Metal When:

• High EMI environments (e.g., near VFDs/servos)

• Vibration >5G (ISO 10816-3)

• Exposure to chemicals/oils

Choose Plastic When:

• Control cabinets/sensors (vibration <2G)

• Cost-sensitive projects (35-60% cheaper)

• Ground loop-sensitive circuits

 3. Durability & Maintenance

Metal connectors withstand >500 mating cycles (VDE0627), while plastic averages 300-400. However, plastic avoids plating wear, making it better for frequent, low-force connections.

Recommendation: Share your specs (vibration, temp, EMC) for a tailored solution.
