Structure and Application of M12 Connector

May 5th at 3:03pm

Structure and Application of M12 Connector

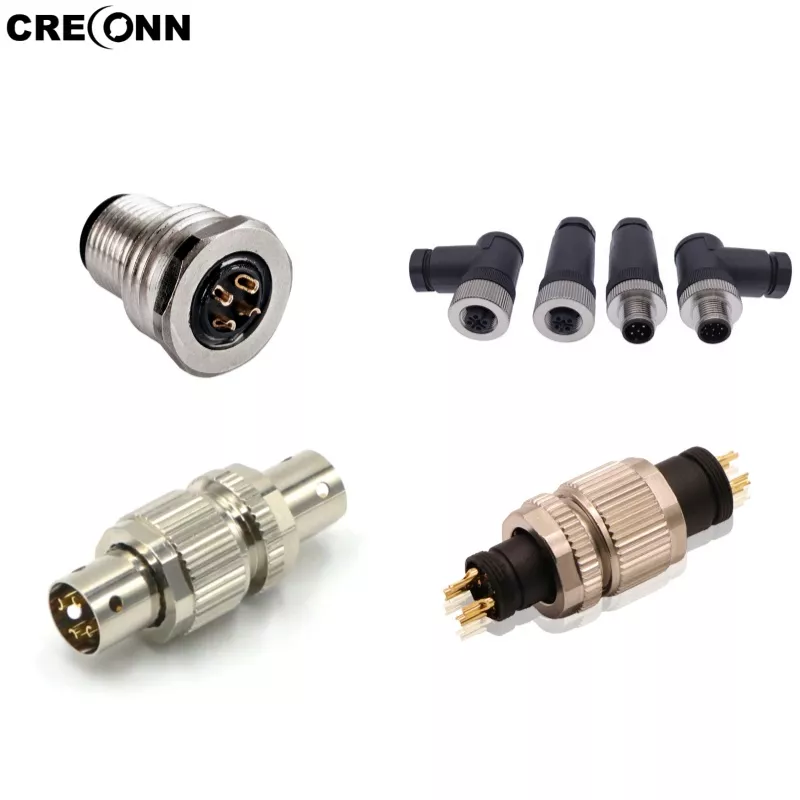

M12 connectors are rugged, circular connectors widely used in industries like industrial automation, rail transportation, aerospace, outdoor lighting, and renewable energy. Renowned for their durability and strong electromagnetic interference (EMI) resistance, they deliver reliable connections even in harsh environments.

Available in male (plug) and female (socket) types, M12 connectors come with various pin configurations—commonly 4-pin, 5-pin, and 8-pin—to suit diverse signal transmission needs. For instance, 4-pin variants are often used for Ethernet, while 8-pin connectors support mixed analog and digital signals.

M12 connectors also feature different coding systems, such as A-coded (Ethernet), B-coded (PROFIBUS), and D-coded (fieldbus), each tailored to specific applications. With high IP67 or IP68 ratings, they offer robust water and dust resistance, ensuring stable operation in challenging conditions.

Key applications include:

  • Industrial Automation: Connecting sensors, actuators, and fieldbus systems in factory settings.
  • Rail Transportation: Enabling data and power transmission between vehicles in rail and subway systems, leveraging their shockproof and temperature-resistant design.
  • Aerospace: Utilized in aircraft and spacecraft control systems for their reliability and interference resistance.
  • Outdoor Lighting: Connecting luminaires to power and control systems in landscape lighting and billboards, thanks to their weatherproofing.
  • Renewable Energy: Linking inverters, controllers, and other equipment in wind and solar power systems to ensure seamless operation.

Ideal for demanding environments, M12 connectors are a trusted choice across industries! 🔌⚡

Guangdong Corecon Precision Industry Co., Ltd. aims to be your reliable partner in pin and socket manufacturing. Our professional team stands ready to support you, driving your business forward. Choose Corecon for a trustworthy partnership and a brighter future. Contact us for inquiries or more information.
