What are the Common Faults and Solutions for M12 Connectors?

What are the Common Faults and Solutions for M12 Connectors?

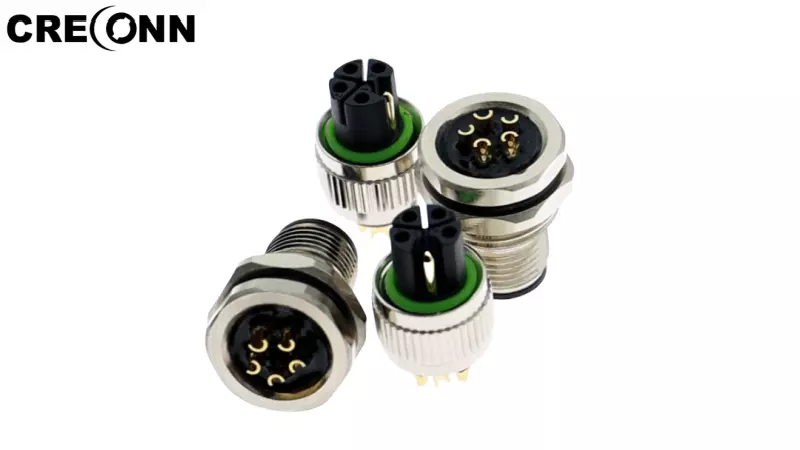

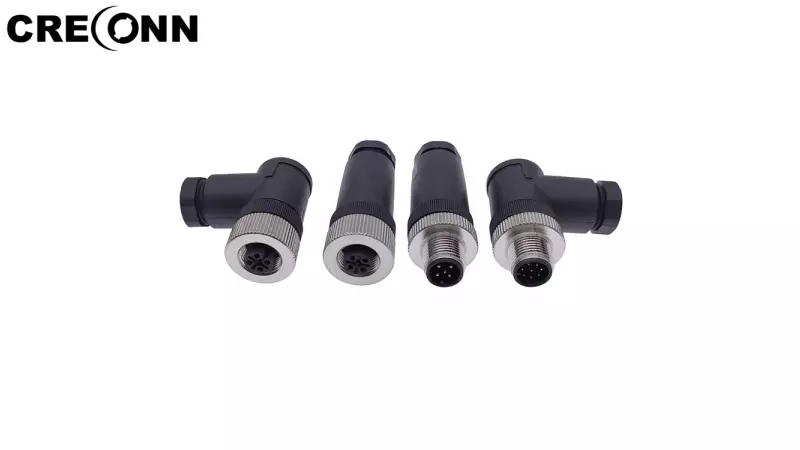

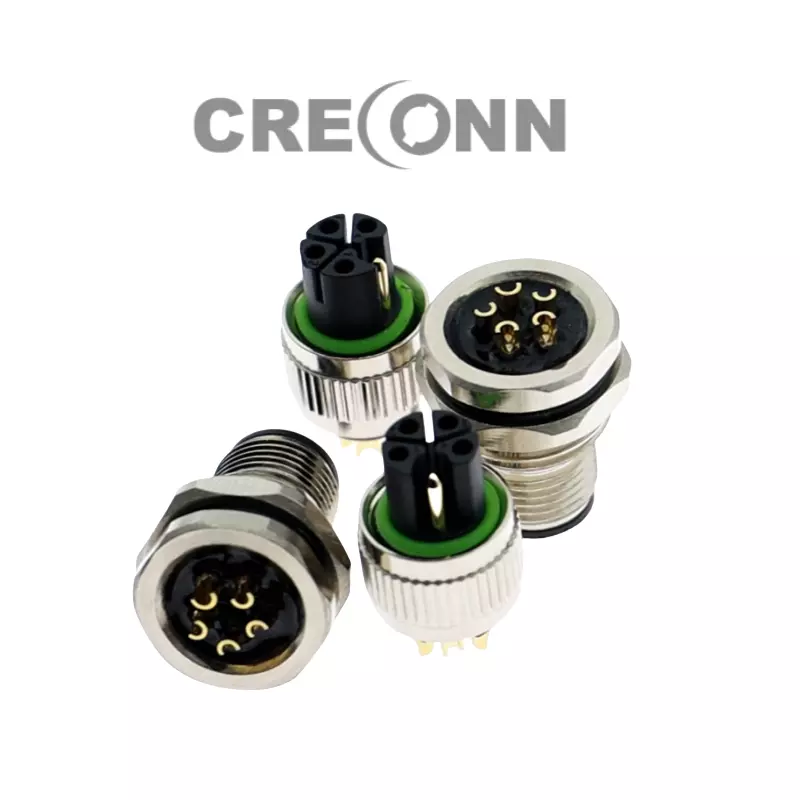

M12 connectors are commonly subject to the following faults and solutions in industrial applications:

1. Poor Contact

-Symptoms: Signal interruption, device false alarms, high contact resistance.

-Causes: Oxidation of pins, poor crimping, wear from repeated mating/unmating, misalignment.

-Solutions: Clean contact points, re - crimp, repair or replace pins, standardize mating/unmating operations.

2. Waterproof Failure

-Symptoms: Water ingress, decreased insulation resistance.

-Causes: Degraded seals, improper installation, humid environment.

-Solutions: Replace seals, standardize installation, select products with appropriate protection ratings.

3. Signal Interference

-Symptoms: High - frequency signal errors, abnormal display screens.

-Causes: Inadequate shielding, poor electromagnetic compatibility, crosstalk.

-Solutions: Ground shielding layers, replace with shielded models, separate cables, ensure proper grounding.

4. Mechanical Damage

- Symptoms: Cracked housing, bent pins, abnormal mating/unmating force.

- Causes：Overloaded mating/unmating, material fatigue, external impact, improper installation.

- Solutions: Standardize operations, replace with metal housings, avoid external forces, install properly.

5. Electrical Performance Faults

- Symptoms: Increased contact resistance, decreased insulation resistance, signal distortion.

- Causes: Oxidation of contact surfaces, aged insulators, electromagnetic interference.

- Solutions: Clean contact surfaces, replace insulators, implement shielding measures.

Preventive Measures

-Selection: Choose connectors with appropriate protection ratings based on the environment.

-Maintenance: Regular inspections, cleaning, and application of conductive grease.

-Operation: Standardize mating/unmating and installation processes to avoid external impacts.

By implementing these methods, the faults of M12 connectors can be effectively reduced and their service life extended.

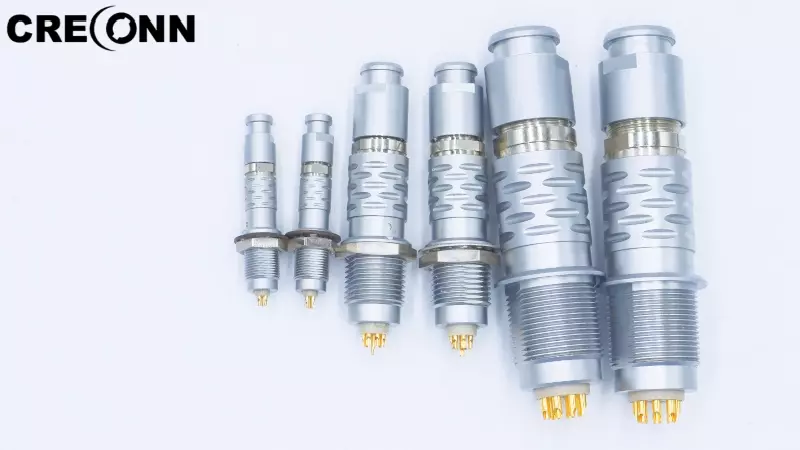

Guangdong Corecon Precision Industry Co., Ltd. specializes in various industrial connector, push-pull self-locking connectors, new energy connectors, M series connectors , waterproof connectors, electric bicycle signal and power connector, and all kinds of wire harnesses. If you have any questions related to the connector industry, please contact us and we will provide you with free, one-stop professional solutions within 24 hours.
