Why Are EV High-Voltage Connectors So Expensive? 3 Core Tech Insights

Why Are EV High-Voltage Connectors So Expensive? 3 Core Tech Insights

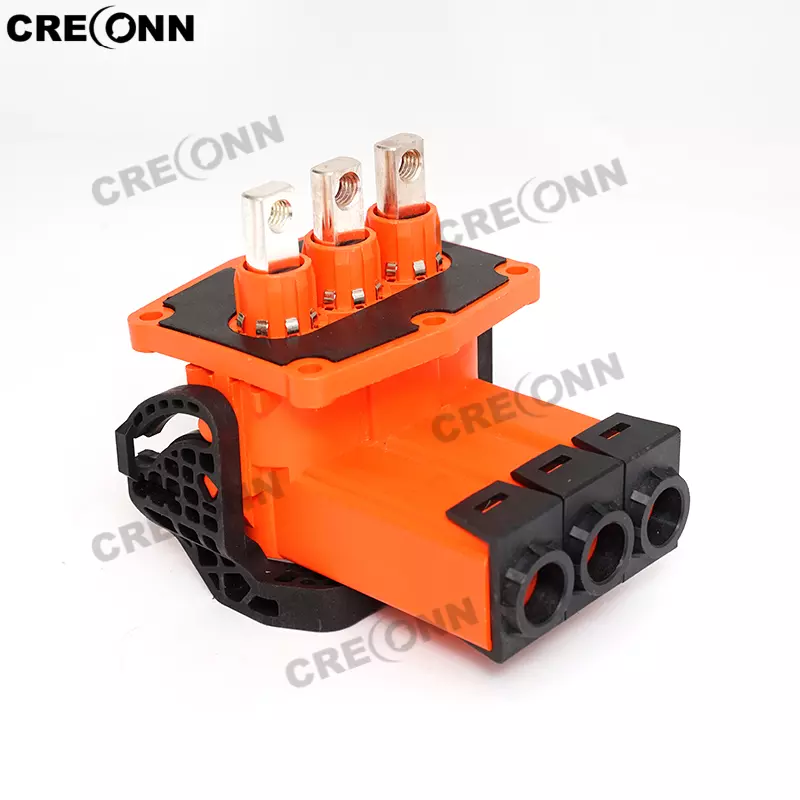

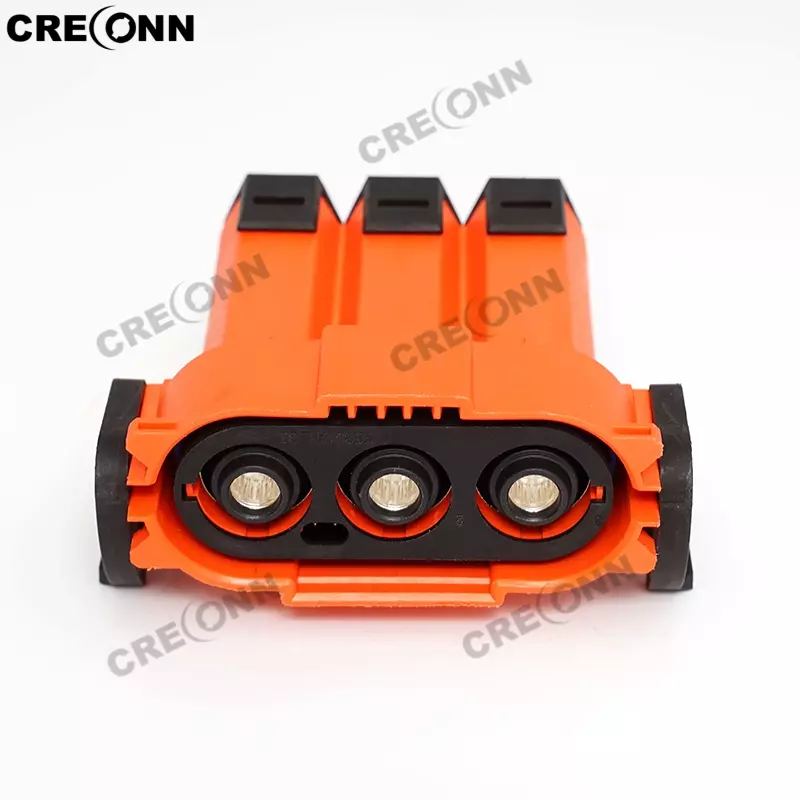

EV high-voltage systems (400V-800V) must transmit 200A+ current—equivalent to powering 100 air conditioners simultaneously. The connectors handling this task cost 5-10x more than standard ones, thanks to three key technologies:

1. High Voltage/Current: Preventing Meltdown

• Breakdown Protection: At 800V, insulation thickness must increase by 0.2-0.5mm to avoid arcing.

• Heat Management: Contact resistance must stay below 0.5mΩ at 200A to prevent overheating.

• Solution: Multi-point contact designs (e.g., TE's PowerTube) expand conductive area.
  Fact: 800V connectors cost 30% more but charge 50% faster than 400V.

2. EMI Shielding: Invisible Armor
   High voltage generates electromagnetic interference (EMI), threatening onboard electronics. Key features:

• Copper Shielding: Over 85% coverage blocks 90% of interference.

• Twisted Pair Wiring: Neutralizes magnetic fields (e.g., Huawei DriveONE).
  Test Standard: Military-grade EMI resistance (10kV ESD, 100MHz-1GHz).

3. Material Costs: The Gold Premium

• Gold Plating: 0.5μm-thick layers (1% of hair width) resist corrosion for 10+ years.

• Specialty Plastics: High-temp nylon (e.g., BASF Ultramid) costs 3x more but survives -40°C~150°C.

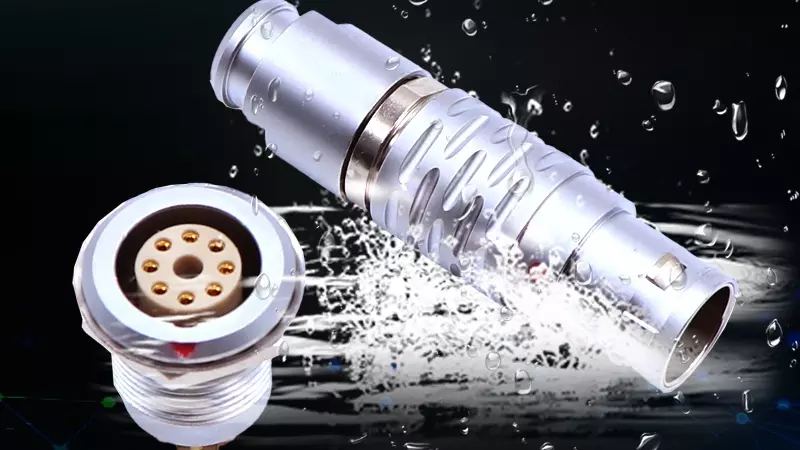

• Waterproofing: Single-connector silicone seals (over 3)withstandpressurewashing(IP6K9K).Example:NIOET7′sconnectorgoldplatingalonecostsabout3)withstandpressurewashing(IP6K9K).Example:NIOET7′sconnectorgoldplatingalonecostsabout75.

The Price Drivers:

• Extreme physics (HV/high current/EMI)

• 10-year/250,000-km durability

• Premium materials (gold/high-temp polymers)
