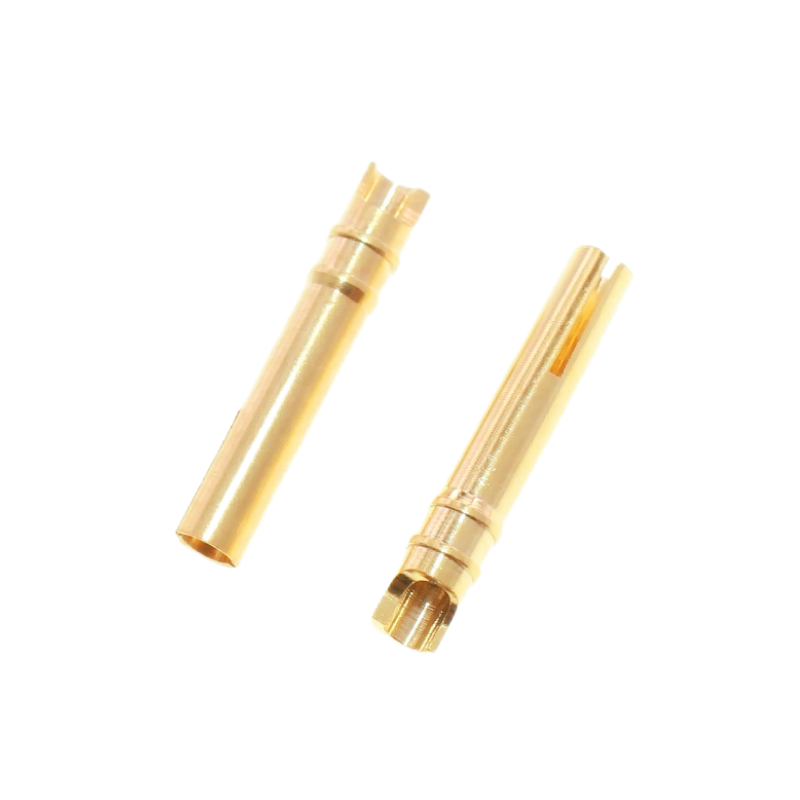

Custom Electrical 10A switch socket parts plug terminal pin threaded copper bar brass terminal pin
Product Advantages
Material：Brass C3604
Surface treatment：Gold Plating
Type：Crimp Terminal
Material quality：Brass gold-plating
Application：Communication Equipment, Oil Exploration, Nuclear Energy, Railway Testing, Power Supply, Electricity, Transportation, Medical Equipment, Instrumentation, Monitoring And Security
Product Details
|
Current pin Materials
|
|
|
Plunger
|
Brass C3604,Plating 30u"Au over 60～100u" Ni.
|
|
Barrel
|
Brass C3604,Plating 10u"Au over 60～100u" Ni
|
|
Spring
|
SUS 304，Plating 1u"
|
|
Mechanical
|
|
|
Srinforce
|
300±20%at 2.1 workinstroke
|
|
Full stroke
|
2.3mm.
|
|
Mechanical life
|
50000cycle Min.
|
|
Electrical
|
|
|
Rated current & voltage
|
DC 12V，10A Max.
|
|
Contact resistance 50mΩ max At working height
|
|
|
Tolerances ON
|
|
|
Lengths
|
±0.15mm.
|
|
Diameters
|
±0.05mm.
|
|
Angles
|
±2°
|
|
Item#
|
KRX-001
|
B Value
|
3600K
|
|
Description
|
Customized Gold Plated Copper pins Contact Pin Brass Pins
|
Usage
|
circular connectorpower connector
crimping connector Welding connector |
|
Material
|
Brass C3604 C3602 H62Phosphor BronzeC54401 C54400
Beryllium copper C17200 C17300
Copper T1、T2、T3 .....etc.... |
Application
|
Audio&video, Electric appliance,Medical equipments.etc......
|
|
Specification
|
M:Ø3.0mm x 25mm
F:Ø4.0mm x 20mm
(customization available) |
Application
|
Car ConnectorsAviation Connectors
High-Speed signal connectors |
|
Surface Treatment
|
Golde plated and silver plated over Nickel plated (customization available)
|
Payment terms
|
T/T , Paypal , Western Union , L/C
|
|
Electroplating thickness
|
Gold plated: 3u"-15u"-18u"-23u"
Nickel plated: 80u"-120u"
|
Delivery&shipping
|
5-15days depending on the quantity
|
|
MOQ
|
1 pc for sample reference
|
Price
|
USD$ 0.089-0.50
|
|
Certificate
|
SGS RoHs
|
Port
|
ShenZhen/HongKong
|
