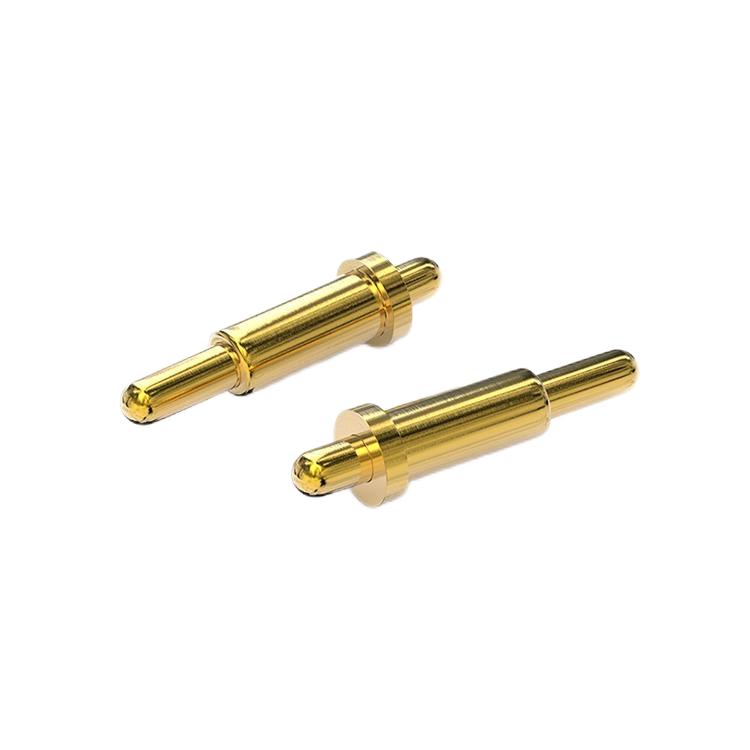

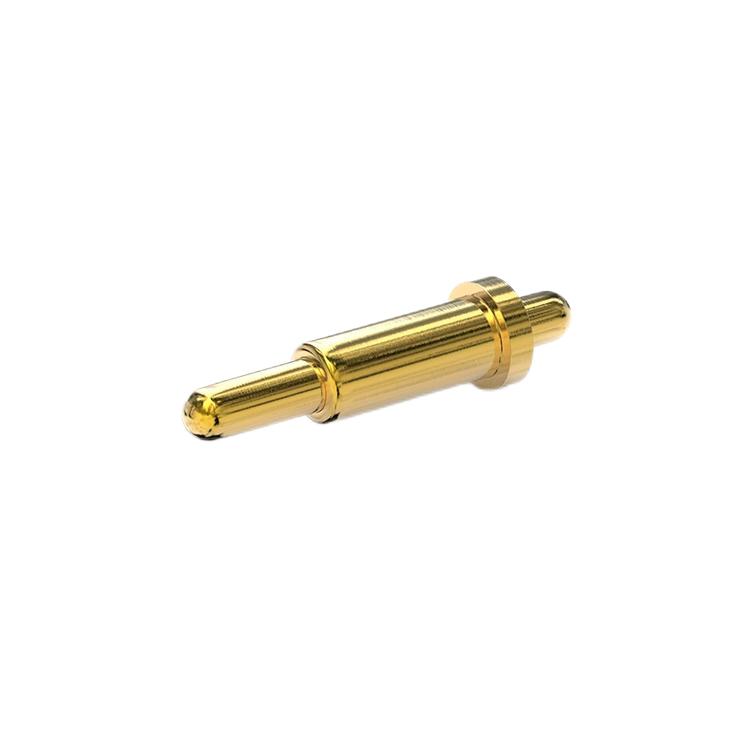

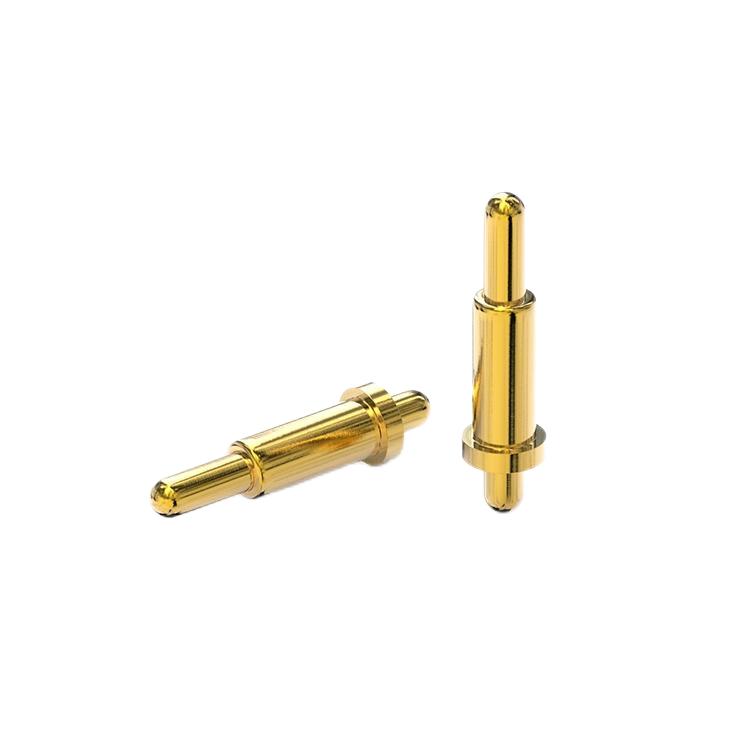

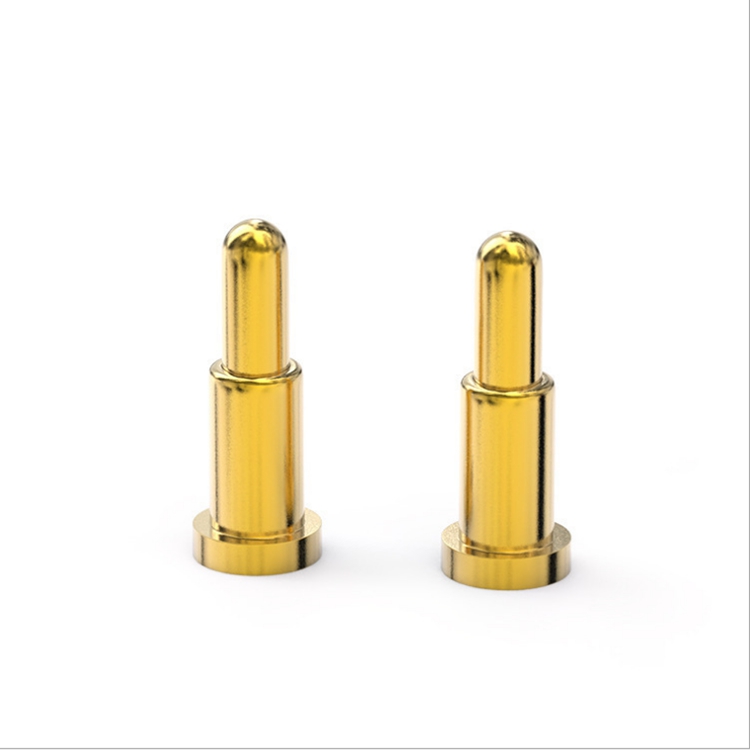

Manufacturer Customize Length 5V2A 12V 2A Single Pin In-Mold Injection Gold Plated Pogo Pin Waterproof Terminal Connectors
Product Advantages
Voltage：12V
Current：2A
Material quality：Brass gold-plating
Use to：Electric conduction,Signal Connection

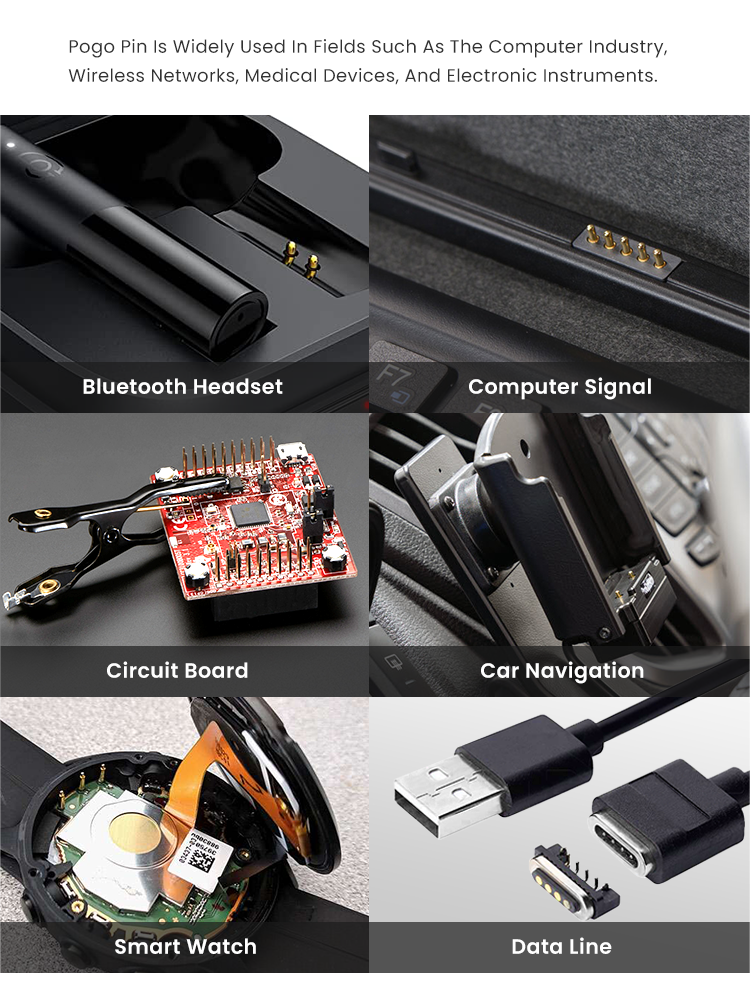

Application：Consumer Electronics, Smart Wear, Home Appliances, E-cigarettes, PCB,Various communication, audiovisual, and digital code appliances
Product Details
| Characteristic:
1. Small size: The diameter of Pogo Pin is very small, making it easy to embed into various small devices.
2. High precision: Pogo Pin connectors have high precision connection performance due to their simple structure and easy control of machining accuracy. 3. High speed transmission: The Pogo Pin connector can achieve high-speed data transmission, effectively improving the device transmission rate and avoiding bit error rates during transmission. 4. High reliability: Pogo Pin connectors have high reliability and are not prone to problems such as connection misalignment and poor contact, ensuring stable and reliable signal transmission. 5. Strong durability: Pogo Pin connectors are made of high-quality materials, covered with a protective layer on the surface,which is not easily damaged and has a long service life. 6. Localizable: The Pogo Pin connector adopts a metal spring structure, which can be locked after insertion without falling off,making it easy to locate and ensuring stable connection between devices. |
|
Characteristics
|
|
|
Electrical
|
(1)Operating Voltage : 12V Max.
|
|
(2)Operating Current : 2A
|
|
|
(3)Contact Resistance: 30mohm Max.At Working Height(Quiescence)
|
|
|
Mechanical
|
(1)Total Stroke : 0.5mm.
|
|
(2)Normal Working Position : 1.6mm. (Spring Force: 60±20gf)
|
|
|
(3)Mechanical Life: 10,000 Cycle Min.
|
|
|
(4)Don'T Exceed The Max. Allowed Compression.
|
|
|
Material/Finish
|
(1)Plunger : Green Copper Brass, Plating 3μ" Au Over 50-60μ" Ni.
|
|
(2)Barrel: Green Copper Brass, Plating 3μ" Au Over 50-60μ" Ni.
|
|
|
(3)Spring: Stainless Steel Wire, Plating 1μ"Au Over 50-60μ "Ni.
|
|
|
(4)cap: PA46+30% Glass Fiber; Black(UL94V-o).
|
|
|
Environmental
|
(1)Storage And Operating Temperature Range :-40°C-+85°C.
|
|
(2)Humidity Range : 10% Rh To 90% Rh.
|
|
|
(3)Salt Spray: 24h.
|
|
|
(4) Thermostability: 260℃、 3 minutes.
|
|
|
Others
|

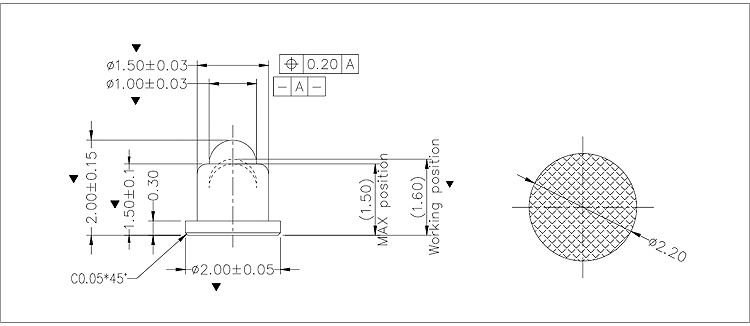

(1) The Dimensions Marked Are Critical,Should Be Checked In Production.
|
|

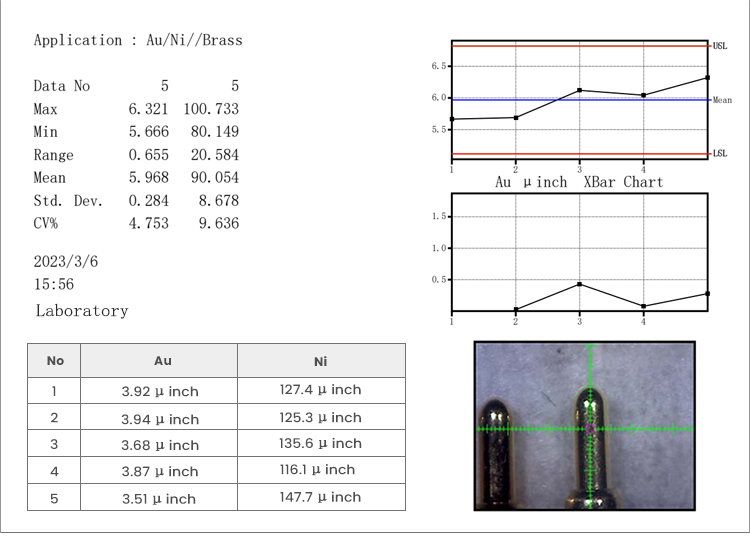

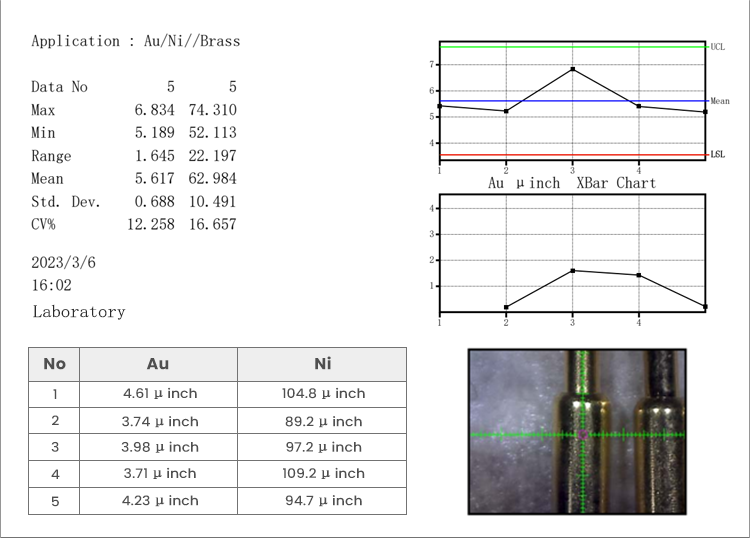

(2)Gold Plated Film Thickness Test Points Shall Be Based On The Bottom.
|
|
|
(3)The Product Must Comply With The Latest Applicable 'RoHS' Requirements.
|
|
|
Material
|
Brass(C3604)
|
|
Color
|
Gold
|
|
Size
|
Depends on customer requirements
|
|
Type
|
SMT
|
|
Plated
|
Gold paltde(10U')(can customized)
|
|
Cycle life
|
100000times
|
|
Contact resistance
|
50m Ohm Max
|
|
Salt fog
|
72H
|
|
Rated current&voltage
|
5A/12V(can customized)
|
|
Applications
|
PCB,power,charging equipment
|
|
Certificate
|
ISO9001/ROHS/REACH/MSDS/SGS
|
|

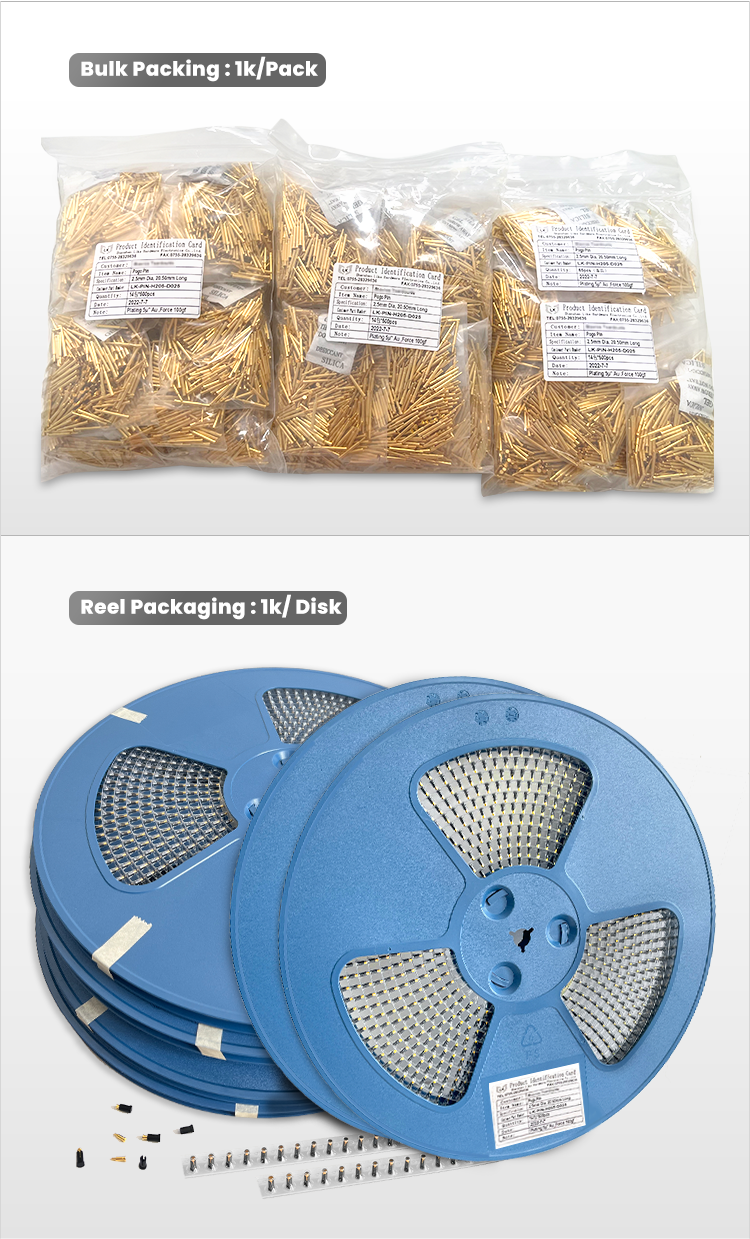

Packing
|
100pcs/PE bag(or according to customer equirements)
|
|
Payment Term
|
T/T,30%Deposit,70%Balance
|
|
Payment method
|
T/T,PayPal,HSBC
|
