New plastic connectors 25A 40A 60A 80A 120A 200A IP67 2Pin HV DC Power EV Connectors HVIL EV Battery Connectors plug
Product Advantages
Temperature：-55℃-125℃
Rated Current：120A
Insulation Resistance：500MΩ
Dielectric Withstand Voltage：3000V DC
Application: New Energy Vehicles, New Energy Industry, Energy Storage
Product Details
|
Series
|
Connector Type
|
Number of Position
|
Rated Current
|
Cable size
|
HV Interlock
|
Shield function
|
|
KRX12
|
Plug
|
1
|
150A
|
25A/35A/50mm²
|
No
|
No
|
|
Socket
|
||||||
|
KRX16
|
Plug
|
2
|
60A
|
2.5/4/8/10
mm²
|
Optional
|
Optional
|
|
Socket
|
||||||
|
Plug
|
3
|
|||||
|
Socket
|
||||||
|
KRX17
|
Plug
|
2
|
120A
|
16/25mm²
|
Optional
|
Optional
|
|
Socket
|
||||||
|
KRX20
|
Straight plug
|
2
|
200A
|
25/35/50
mm²
|
Optional
|
Optional
|
|
Elbow plug
|
||||||
|
Socket
|
||||||
|
Straight plug
|
3
|
|||||
|
Elbow plug
|
||||||
|
Socket
|
Feature* Touch-proofdesign
* HVIL and shield options * Ingress protection: IP67 * 360° shielded connection * Multiple key options: X, Y, U, V * Wide wire range option: 16mm2, 25mm2 * Push-pull lockingwith secondary locking function |
Specfication* Temperature: -55℃∽ +125℃
* Rated Current: 120A * Insulation Resistance: 500MΩ * Dielectric Withstand Voltage: 3000VDC * Mechanical Life: 500 times * Salt Spray: 48 hours * Ingress Protection: IP67 |
Application* DC-to-DC Converters
* AC/DC Charging Station * Electric bus * Electric motors * High-current batteries pack * Hybrid electric vehicles * HV PDU * PTC & Auxiliary * PTC heater * On-Board Charger (OBC) * Inverters |
| This is not a definitive list of applications for this product. It represents some of the more common uses. |
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Corecon
|
|
Model Number
|

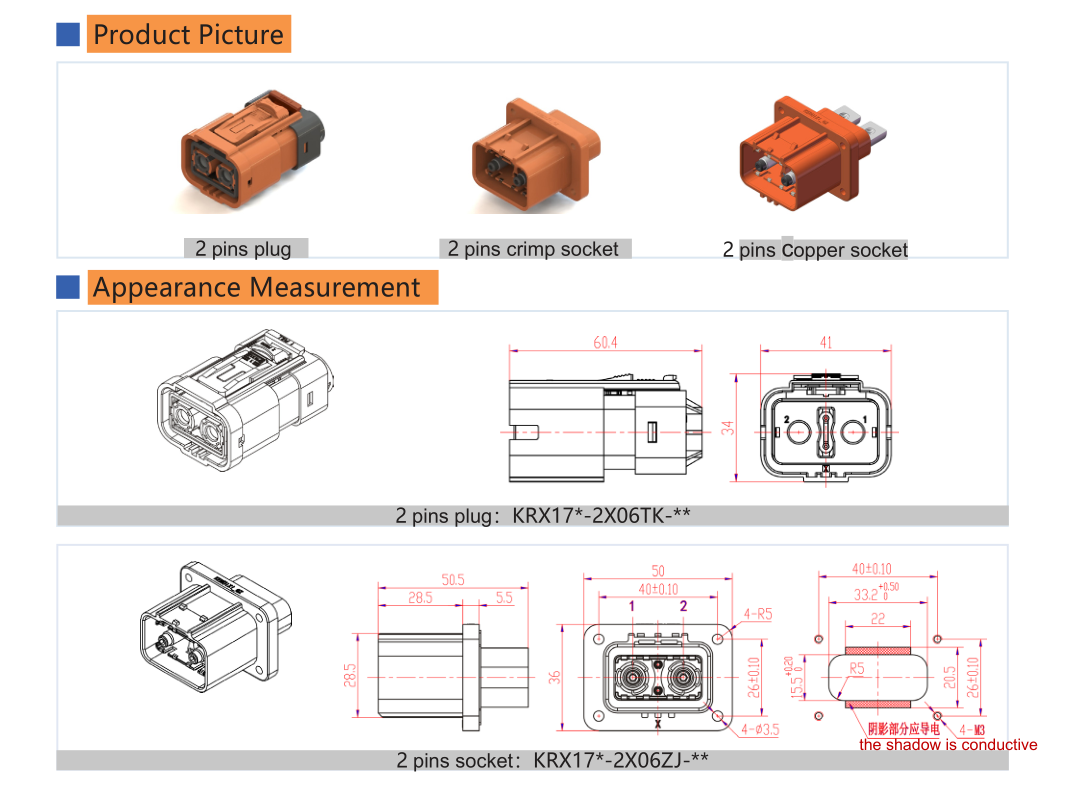

KRX17*-2X06TK-**
|
|
Type
|
DC power plug
|
|
Application
|
Power, PDU / Battery / Motor / Rail system / Marine
|
|
Gender
|
Male/Female
|
|
Color
|
Orange
|
|
Life
|
500 times
|
|
Warranty
|
12 months
|
|
Certificate
|
ISO9001:2015, CE, RoHS
|
|
Temperature:
|
-55℃∽ +125℃
|
|
Salt Spray
|
96 hours
|
