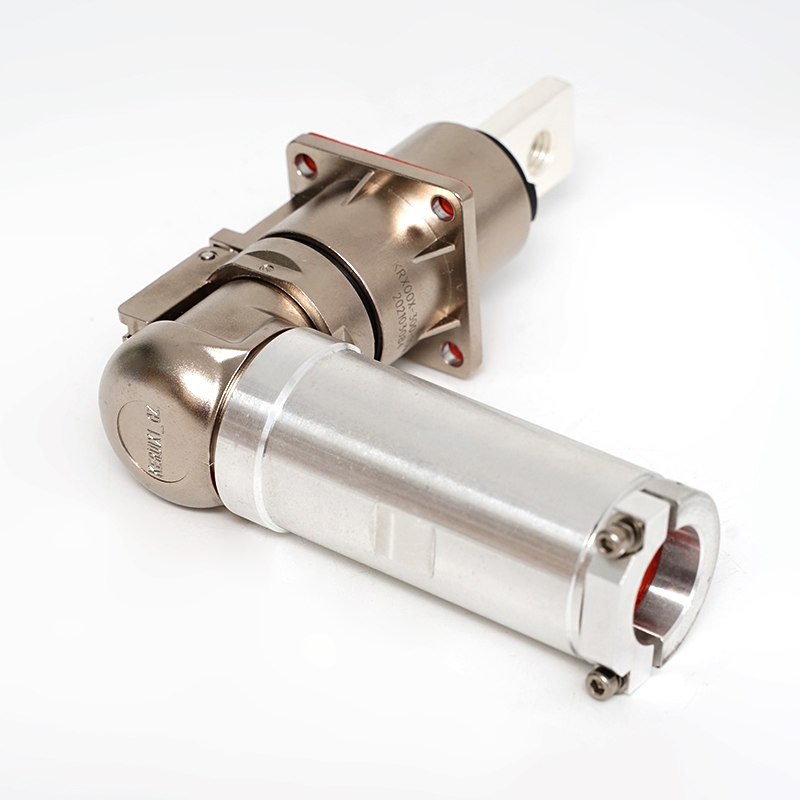

ip67 battery connector high current 300A Single Pin Hv DC Connector 35-70mm HV Lock EV High Voltage Cable HV line connectors
Product Advantages
Temperature：-55℃-125℃
Rated Current：500A
Insulation Resistance：5000MΩ
Dielectric Withstand Voltage：5000V DC
Application: New Energy Vehicles, New Energy Industry, Energy Storage
Product Details
|
Series
|
Connector Type
|
Number of Position
|
Rated Current
|
Cable size
|
HV Interlock
|
Shield function
|
|
KRX500
|
Elbow plug
|
1
|
500A
|
95/120/135/150
mm²
|
Optional
|
Optional
|
|
Straight plug
|
||||||
|
Socket
|
||||||
|
KRX300
|
Elbow plug
|
1
|
300A
|
35/50/70mm²
|
Optional
|
Optional
|
|
Straight plug
|
||||||
|
Socket
|
||||||
|
KRX60
|
Plug
|
2
|
60A
|
2.5/4/6/10mm²
|
Optional
|
Optional
|
|
Socket
|
||||||
|
KRX10
|
Plug
|
1
|
200A
|
25/35/50mm²
|
NO
|
NO
|
|
Socket
|
||||||
|
Plug
|
2
|
80A
|
25/35/50mm²
|
NO
|
NO
|
|
|
Socket
|
||||||
|
KRX15
|
Plug
|
3
|
50A
|
2.5/4/6mm²
|
NO
|
NO
|
|
Socket
|
||||||
|
Plug
|
4
|
50A
|
2.5/4/6mm²
|
NO
|
NO
|
|
|
Socket
|
||||||
|
Plug
|
19
|
5A
|
0.5/0.75/1mm²
|
NO
|
NO
|
|
|
Socket
|
Feature* Touch-proof design
* Ingress protection: IP67 * 90° and 180° plugs options * 360° shielded connection * No tool required to unmate * Multiple key options: X, Y, U, V * Shield and unshielded plug options * HVIL and temperature sensor options |
Specfication * Temperature: -55℃∽ +125℃
* Rated Current: 500A * Insulation Resistance: 5000MΩ * Dielectric Withstand Voltage: 5000VDC * Mechanical Life: 500 times * Salt Spray: 48 hours * Ingress Protection: IP67 * WireRange: 95-95mm2, 120-120mm2, 135-135mm2,150-150mm2 |
Application* DC-to-DC Converters
* AC/DC Charging Station * Electric bus * Electric motors * High-current batteries pack * Hybrid electric vehicles * HV PDU * PTC & Auxiliary * PTC heater * On-Board Charger (OBC) * Inverters |
| This is not a definitive list of applications for this product. It represents some of the more common uses. |
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Corecon
|
|
Model Number
|
KRX28*-50*-**
|
|
Type
|
DC power plug
|
|
Application
|
Power, PDU / Battery / Motor / Rail system / Marine
|
|
Gender
|
Male/Female
|
|
Color
|
Orange
|
|
Life
|
500 times
|
|
Warranty
|
12 months
|
|
Certificate
|
ISO9001:2015, CE, RoHS
|
|
Temperature:
|
-55℃∽ +125℃
|
|
Salt Spray
|
48 hours
|
