Industrial Connector Selection: 5 Core Points

August 25th at 5:14pm

Industrial Connector Selection: 5 Core Points

1. Electrical Performance is the Foundation

1) Voltage/Current: The rated value must be higher than the actual value of the equipment (e.g., for equipment with 380V/50A, a 600V/60A grade connector is recommended) to prevent overheating and burnout.

2) Contact Resistance: Prioritize low-resistance products with <5mΩ to reduce power loss, suitable for long-distance/high-current scenarios.

3) Insulation Resistance: Must meet the standard of >10GΩ to ensure electrical isolation and prevent leakage and signal interference.

2. Environmental Adaptability Determines Durability

1) Temperature Range: Cover the operating environment (choose 200℃-resistant models for high-temperature areas, and models that work normally at -55℃ for low-temperature areas) to avoid material hardening and poor contact.

2) Protection Class (IP): Use IP65 for indoor dry environments, and IP67/IP68 for outdoor/humid environments (e.g., IP68 for marine equipment).

3) Chemical Protection: For chemical industry and similar scenarios, select acid- and alkali-resistant materials (such as PPSU material compliant with IEC 60695-2-11).

3. Mechanical Performance Ensures Stability

1) Insertion/Extraction Lifespan: Choose models with ≥5000 cycles for general scenarios (e.g., M12 connectors); higher-lifespan models are required for equipment that needs frequent maintenance.

2) Locking Mechanism: Use threaded locking for vibration-prone environments to prevent loosening; use bayonet/push-pull locking for scenarios requiring quick assembly/disassembly (with slightly weaker anti-vibration performance).

4. Size and Installation Must Be Compatible

1) Space Constraints: For compact equipment, select miniaturized connectors to avoid affecting the layout of other components.

2) Installation Method: Panel-mounted type for easy maintenance, cable-mounted type for connecting different cables, and PCB-mounted type for direct soldering to circuit boards—choose based on needs.

5. Cost Requires Comprehensive Consideration

1) Initial Cost: Do not blindly choose low-priced products; prioritize cost-effective options that meet performance requirements.

2) Lifecycle Cost: Modular designs may have higher initial costs, but they are easier to maintain and reduce equipment downtime, making them more cost-effective in the long run.

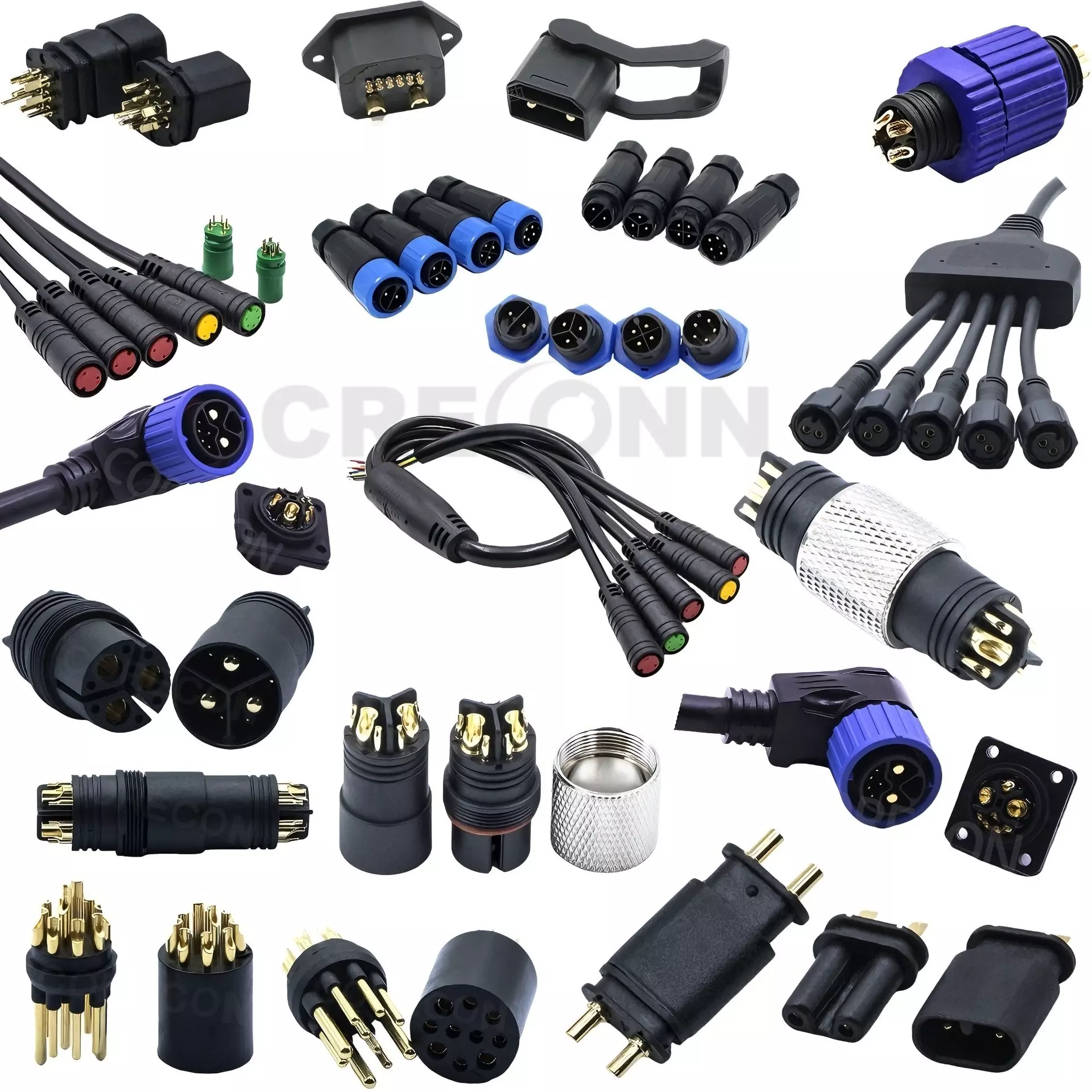

Guangdong Corecon Precision Industry Co., Ltd. specializes in various industrial connector, push-pull self-locking connectors, new energy connectors, M series connectors , waterproof connectors, electric bicycle signal and power connector, and all kinds of wire harnesses. If you have any questions related to the connector industry, please contact us and we will provide you with free, one-stop professional solutions within 24 hours.
