Pin and Sockets Manufacturing: These Critical Tests Are Non-Negotiable!

Pin and Sockets Manufacturing: These Critical Tests Are Non-Negotiable!

The core components of chargers and data cables—pins and jacks—must pass multiple "test checkpoints" before leaving the factory! Here’s a concise breakdown of the key tests that determine their safety and durability:

1. Electrical Performance Testing: The First Line of Defense for Electrical Safety

1. Insulation Resistance Test: Resistance between pins and housing/among pins must exceed several million ohms to prevent leakage current;

2. Withstand Voltage Test: Pins for 220V household appliances must resist 1500V high voltage for 1 minute to avoid short circuits;

3. Contact Resistance Test: Resistance at the contact point between pins and jacks must be below 50 milliohms to prevent overheating and potential failures.

2. Mechanical Performance Testing: Rigorous Checks for Durability

• Insertion and Extraction Force Test: Machines perform over 5,000 insertion-extraction cycles; insertion force (10-30N) and extraction force (≥5N) must meet standards to avoid loose connections and power outages;

• Mechanical Strength Test: No deformation or breakage when subjected to 10N force (e.g., USB pins can withstand ±45° bending).

3. Environmental Adaptability Testing: For Complex Working Conditions

1. High-Low Temperature Test: Stable performance after exposure to -40℃ (low temperature) and 85℃ (high temperature) for several hours;

2. Humidity and Heat Test: No rust or insulation degradation after 10+ days at 40℃ and 95% humidity;

3. Corrosion Resistance Test: No rust or coating peeling after 48-hour salt spray testing (suitable for outdoor/coastal applications).

4. Specialized Contact Performance Testing: Ensuring Stable Connections

• Vibration Test: Contact resistance remains compliant after hours of vibration (10-500Hz) to avoid intermittent connections;

• Impact Test: No structural damage or contact failure after being struck by a 100g weight dropped from 10cm height.

5. Flame Retardancy Test: Preventing Fire Hazards

When burned with an 850℃ flame for 30 seconds, the sample must self-extinguish within 30 seconds after flame removal, with no drips that could ignite cotton.

When choosing chargers or data cables, check if they have passed these tests for safer use!

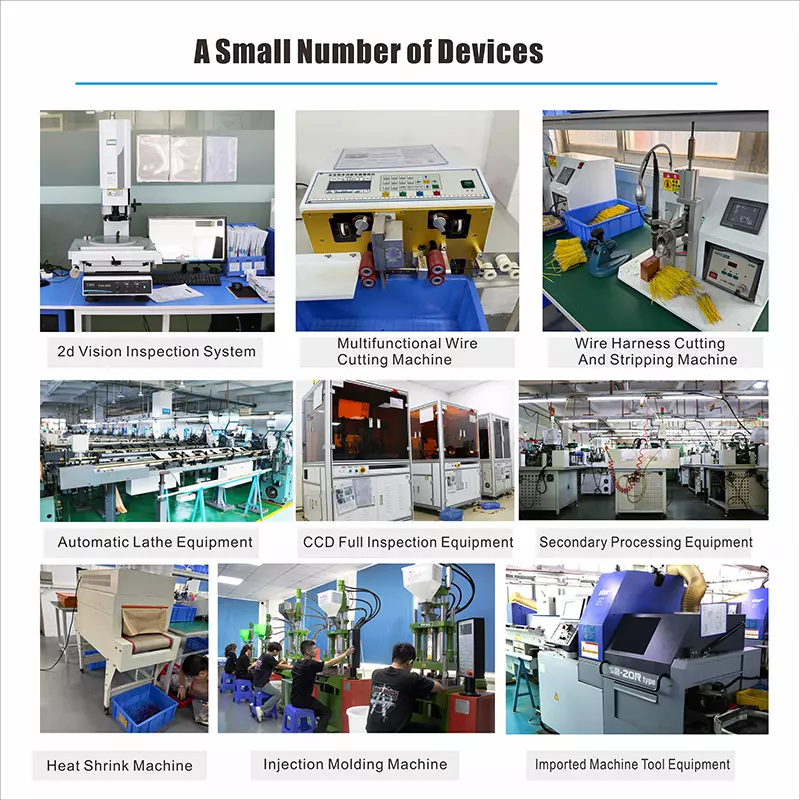

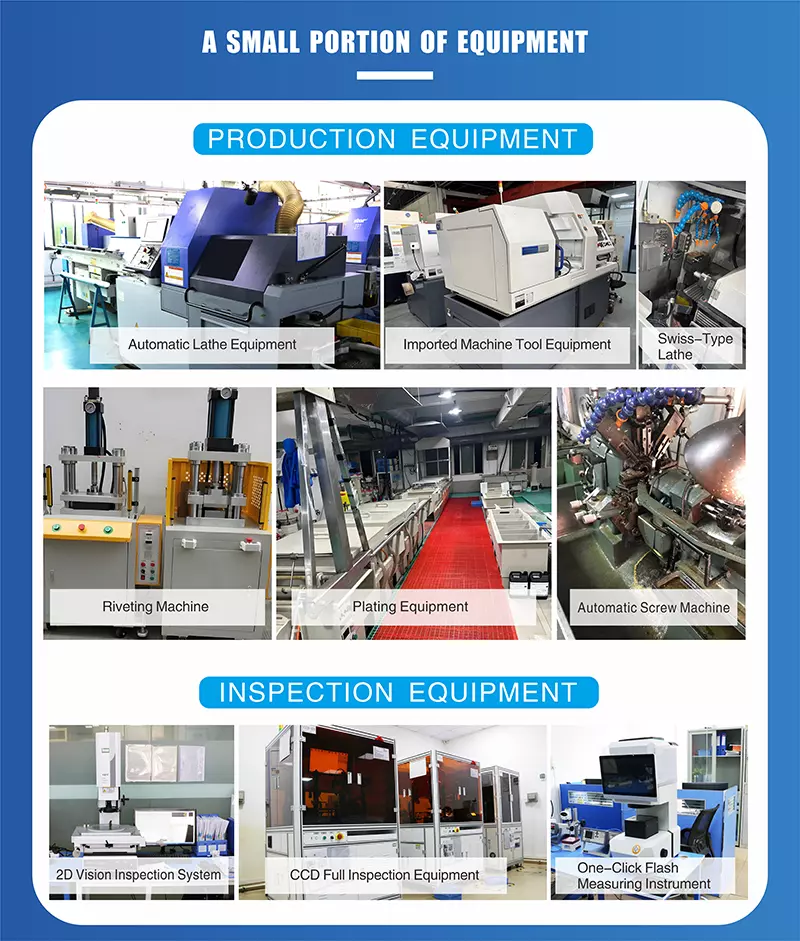

Guangdong Corecon Precision Industry Co., Ltd. has been a professional manufacturer of pins, sockets,pogo pins, pogo pin connectors and hardware CNC precision parts in China for 18 years. And we have gotten certificate of ISO9001 and IATF16949. If you have any questions about the pin and socket industry, please contact us and we will provide you with free, one-stop professional solutions within 24 hours.
