M-Series Waterproof Connector Selection Guide
M-Series Waterproof Connector Selection Guide

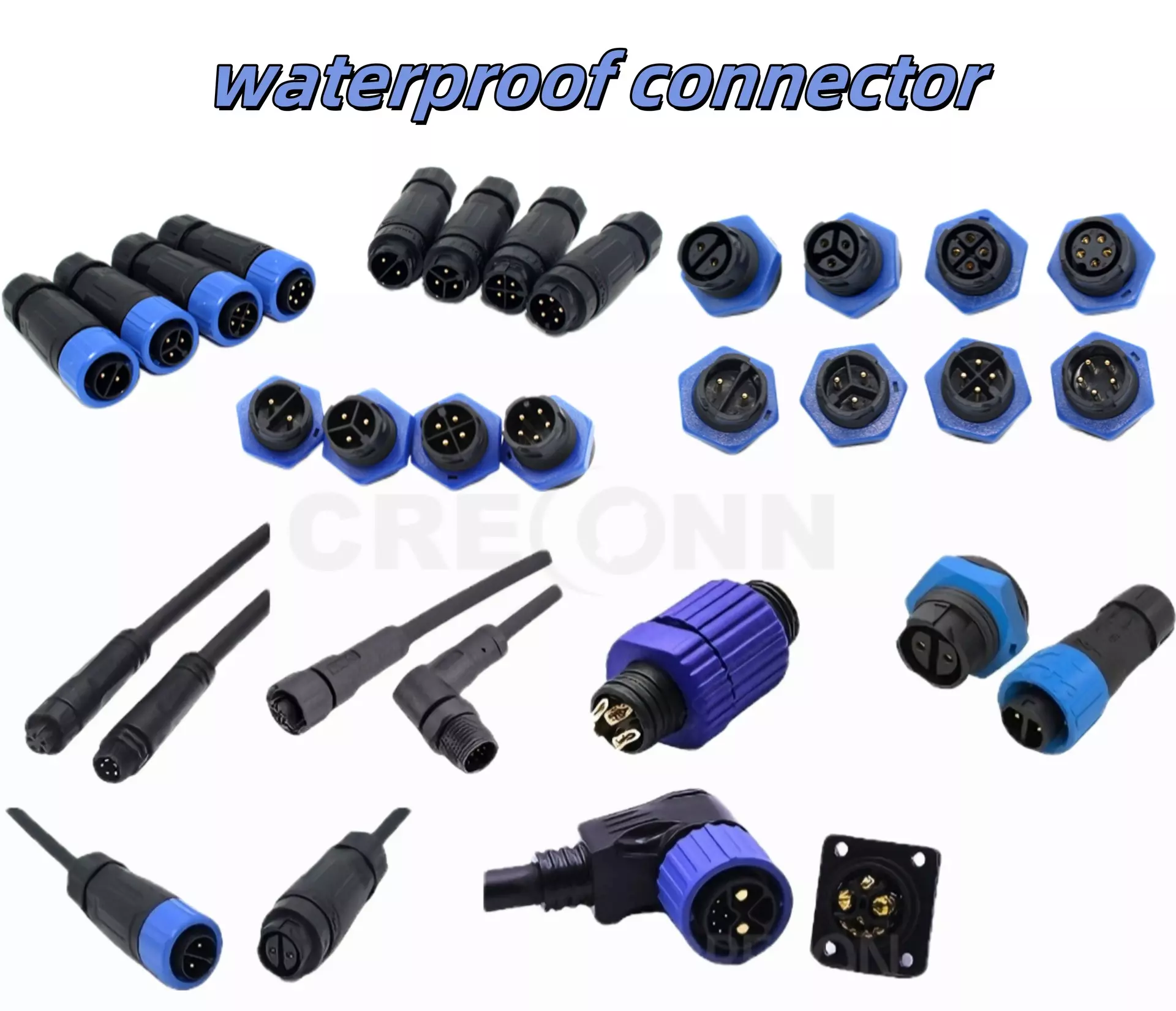

M-series waterproof connectors are widely used in industrial and outdoor scenarios, and accurate selection is crucial to ensure stable equipment operation. Here are streamlined selection points to help you quickly find the right product.
I. Lock in Core Application Requirements
1. Environmental Adaptation: Choose IP65 for humid environments, IP67 for short-term water immersion, and IP68/IP69K for long-term underwater or high-pressure washing environments (such as food processing).
2. Transmission Matching: For power transmission, pay attention to the rated current (M23 is preferred for high-power equipment); for signal transmission, consider the rate (M12 X-coding is selected for industrial Ethernet, supporting 10Gbps), and gold-plated contacts are preferred for weak signal scenarios (such as M8).
II. Focus on Key Performance Parameters
1. Protection Level: The last two digits of the IP code determine the protection capability. On the basis of IP6 dustproof, IP7 is resistant to short-term water immersion, IP8 is resistant to long-term underwater, and IP9K is resistant to high-temperature and high-pressure washing.
2. Electrical Indicators: The rated current/voltage must be higher than the working value of the equipment, and a derating space should be reserved for high-temperature environments; low contact resistance (such as gold-plated contacts) can reduce signal loss.
3. Mechanical Characteristics: For frequent plugging and unplugging, choose products with a service life of more than 5000 times (such as M8); metal shell models are preferred for vibration and impact environments.
III. Match Structural Design Details
1. Size Adaptation: Use M5/M8 for small equipment (sensors), and choose M12/M23 for large equipment (control cabinets).
2. Connection Method: Threaded connections (such as M12) are used for long-term fixed scenarios, and push-pull/bayonet types are selected for frequent plugging and unplugging.
3. Pin Count Selection: 2-pin for basic transmission, 4-pin or more for multi-line (power + signal) (such as 8-pin M12 for industrial cameras).
IV. Balance Additional Factors
4. Brand Assurance: Priority is given to well-known brands with UL/CE certification to ensure performance stability.
5. Cost Control: Focus on service life and reliability for key equipment, and focus on cost performance for temporary scenarios.
Selection needs to comprehensively consider environmental, performance and structural factors. If you have any questions, you can contact us for customized suggestions.
